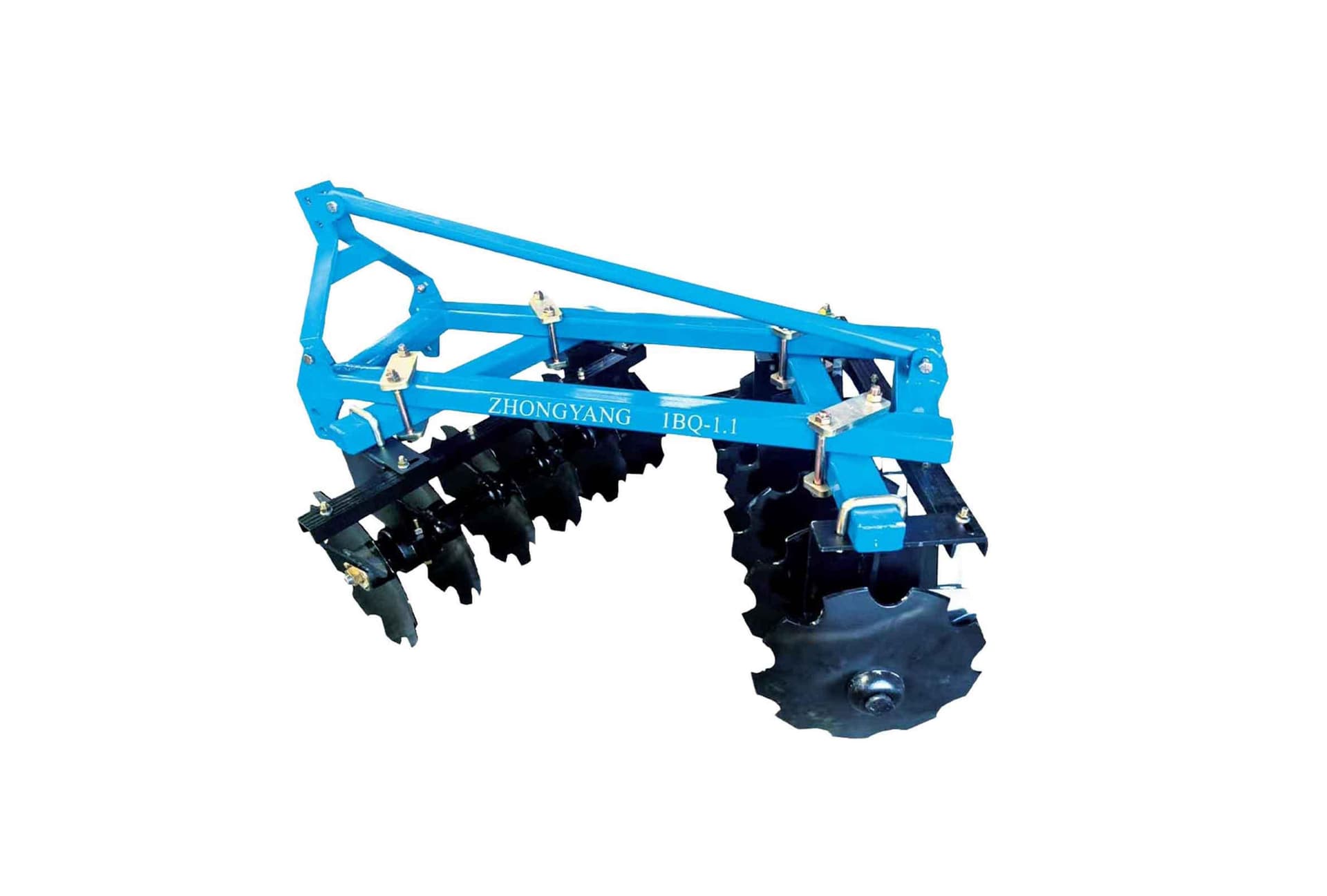

1BQX Series Mounted Light Duty Disc (Enhanced Version)
1BQX-1.1, 1BQX-1.3, 1BQX-1.5, 1BQX-1.7, 1BQX-1.9
Key Features
Mounted light duty disc is used in open field working for the superficial ploughing, for the shattering of clods, preparation of soil for sowing, burial of organic substances and remains. It can be used in light and medium soil.
Product Description
| ITEM | UNIT | 1BQX-1.1 | 1BQX-1.3 | 1BQX-1.5 | 1BQX-1.7 | 1BQX-1.9 |
| Max. Working Width |
m | 1.1 | 1.3 | 1.5 | 1.7 | 1.9 |
| ft | 3.5 | 4 | 5 | 5.5 | 6 | |
| Max. Working Depth |
cm | 12 | ||||
| in | 5 | |||||
| Disc No. | pcs | 12 | 14 | 16 | 18 | 20 |
| Disc Diameter | mm | 460 | ||||
| in | 18 | |||||
| Overall Weight | kg | 296 | 326 | 355 | 382 | 410 |
| lb | 653 | 719 | 783 | 842 | 904 | |
| Hitch | Three Point Mounted | |||||
| Matched Power | hp | 15-20 | 25-30 | 30-35 | 35-40 | 40-45 |
