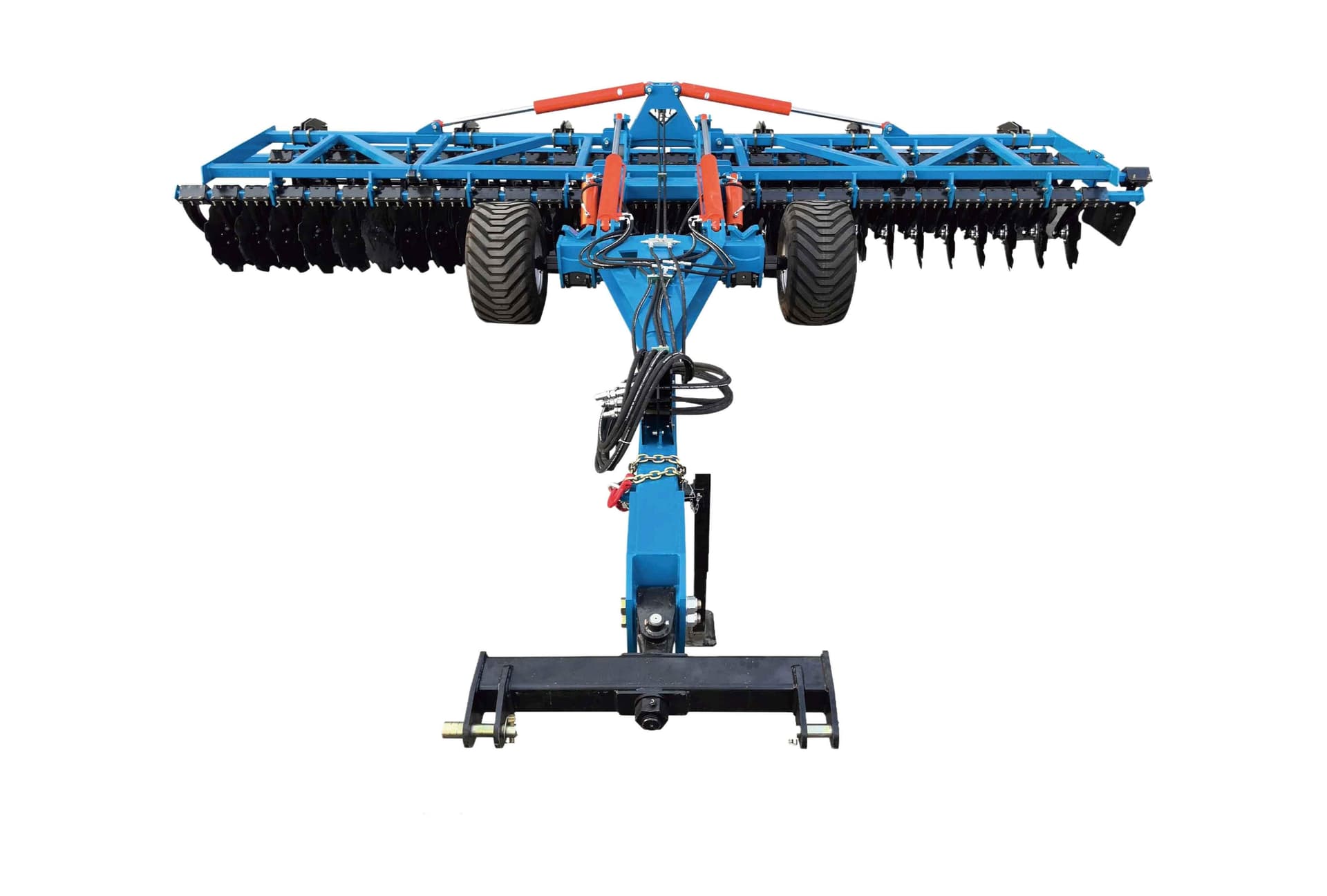

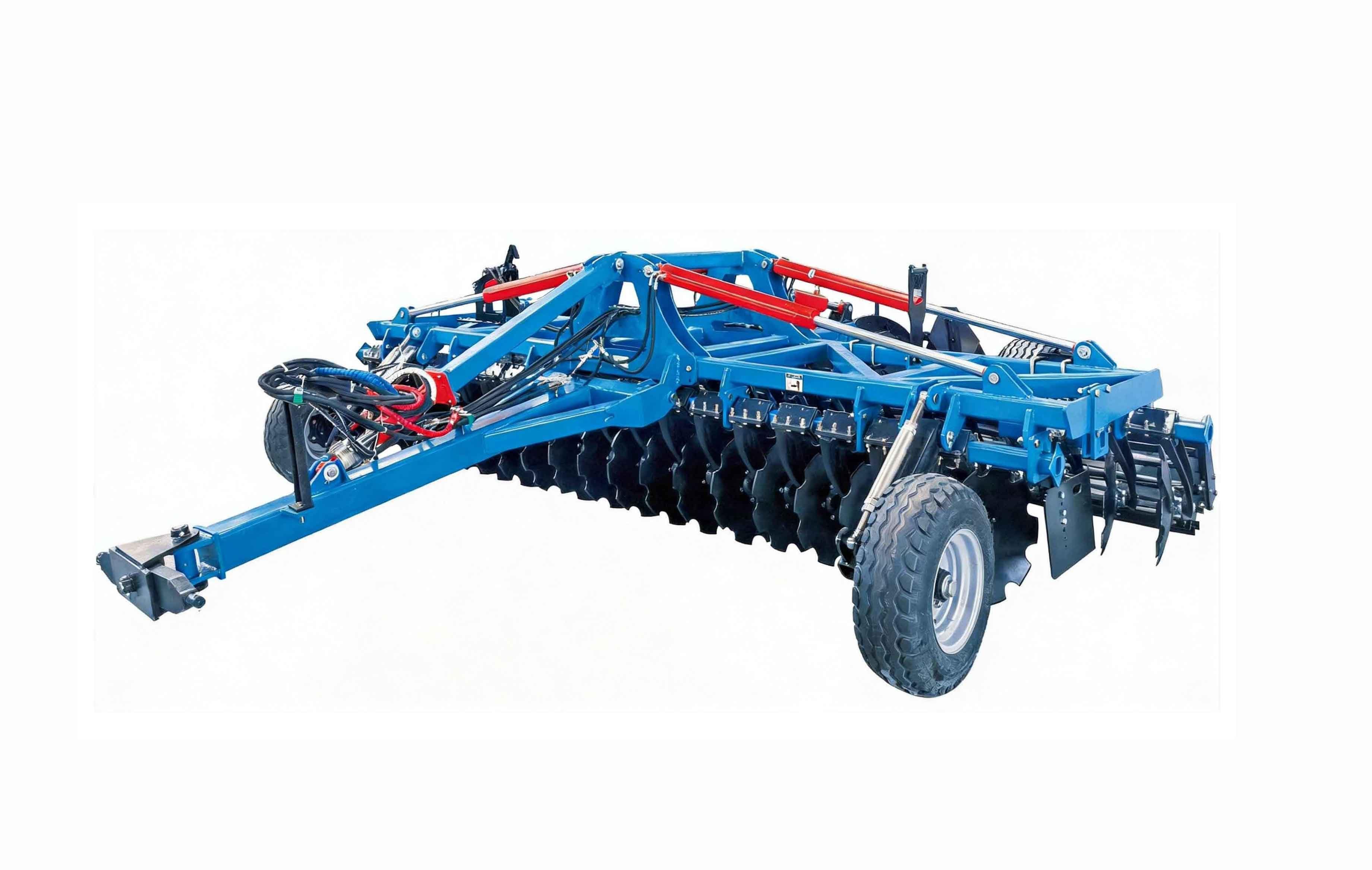

1BZM Series Hydraulic Folding Speed Disc
1BZM-6.0, 1BZM-6.5, 1BZM-7.5, 1BZM-8.0
Key Features
1BZM series hydraulic folding Speed Disc is an agricultural machinery that integrates functions of cultivation, stubble ploughing and soil crushing. It can mix the straw with the soil, preserving the organiccomponents of the soil.
Product Description
| ITEM | UNIT | 1BZM-6.0 | 1BZM-6.5 | 1BZM-7.5 | 1BZM-8.0 |
| Max. Working Width | m | 6.0 | 6.5 | 7.5 | 8.0 |
| ft | 20 | 21 | 25 | 26 | |
| Max. Working Depth | cm | 15 | |||
| in | 6 | ||||
| Disc No. | pcs | 44 | 48 | 56 | 60 |
| Disc Diameter | mm | 610/660 | |||
| in | 24/26 | ||||
| Overall Weight | kg | 5500 | 6000 | 7000 | 7800 |
| lb | 12125 | 13228 | 15432 | 17196 | |
| Hitch | Traction | ||||
| Matched Power | hp | 300-350 | 350-380 | 380-420 | 400-450 |
