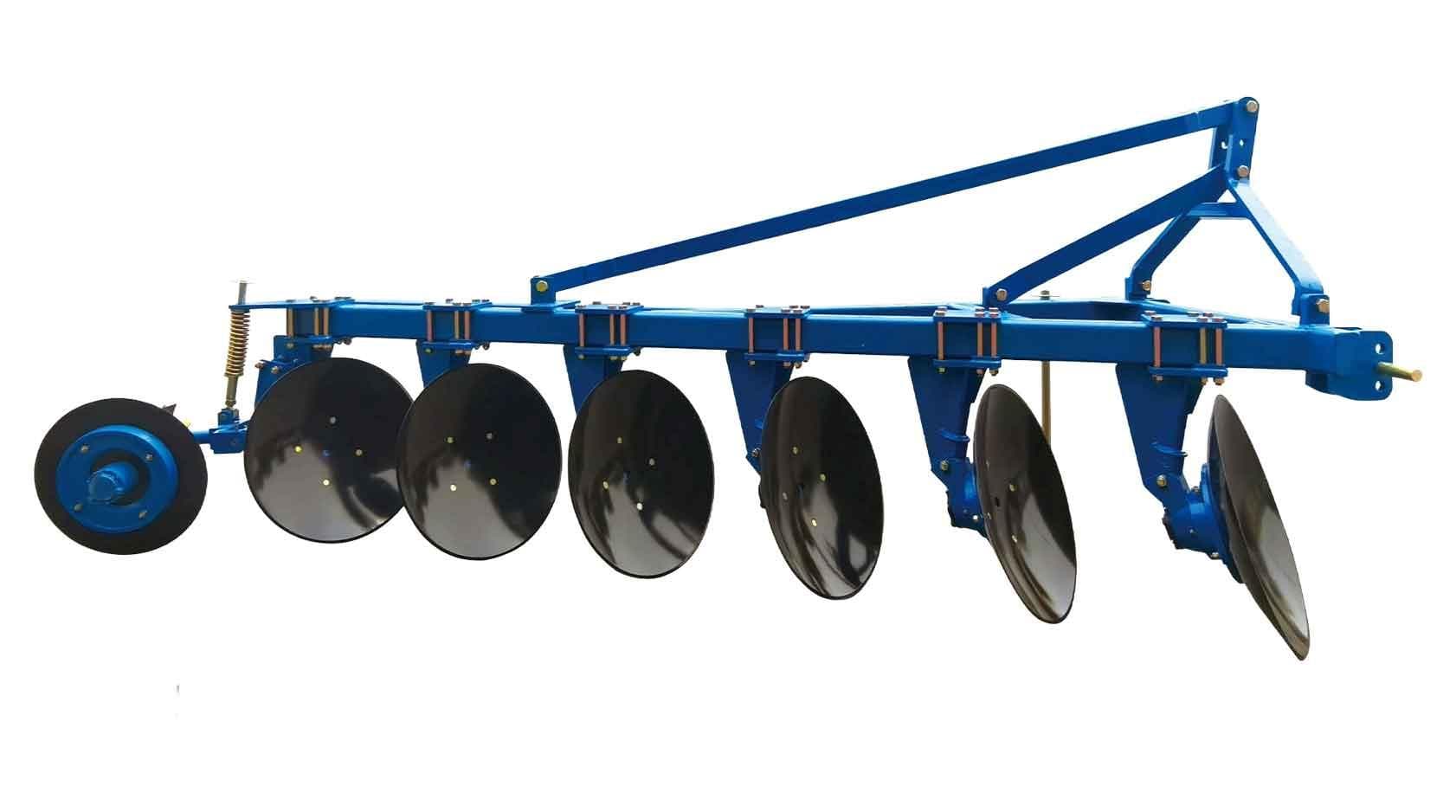

1LY Series Disc Plough
1LYQ-320, 1LYQ-420, 1LYQ-520, 1LYQ-325, 1LYQ-425, 1LYQ-530
Key Features
The disc plough series products are mainly used for land plowing operations. They do not tangle with grass, clog, or bulk up soil. They can cut though stems and rhizomes of crops. They are particularly suitable for plowing high-yield green manure fields, wheat stubble, and farmland with complex conditions, such as overgrown weeds, standing stems, and brick and stone fragments in the soil. They have the characteristics of low working resistance and easy operation.
Product Description
| ITEM | UNIT | 1LYQ-320 | 1LYQ-420 | 1LYQ-520 | 1LYQ-325 | 1LYQ-425 | 1LYQ-530 | |
| Max. Working Width |
m | 0.6 | 0.8 | 1.0 | 0.75-0.9 | 1.0-1.2 | 1.25-1.5 | |
| ft | 2 | 2.5 | 3 | 2.5-3 | 3-4 | 4-5 | ||
| Max. Working Depth |
cm | 20 | 25-30 | |||||
| in | 8 | 10-12 | ||||||
| Disc No. | pcs | 3 | 4 | 5 | 3 | 4 | 5 | |
| Disc Diameter | mm | 510 | 660 | 660 | 710 | |||
| in | 20 | 26 | 26 | 28 | ||||
| Overall Weight | kg | 190 | 240 | 300 | 400 | 520 | 650 | |
| lb | 419 | 529 | 661 | 882 | 1146 | 1433 | ||
| Hitch | Three Point Mounted | |||||||
| Matched Power |
hp | 25-35 | 35-45 | 50-70 | 50-70 | 60-80 | 90-120 | |
